reflective road stud
Buyers rarely complain that reflective road studs cost too much. They complain that they looked fine on installation day and stopped reflecting a few months later. That is usually not a site problem — it is designed in at the factory. Here are the four pain points we see most often, and how our R001 road stud addresses each one.
1. Non-standard reflectors that dim within months
Cheap studs use recycled, regrind or unspecified material that yellows and hazes under UV exposure and thermal cycling. Imprecise tooling for the microprism structure scatters light instead of returning it, so brightness is already low on day one. Batch consistency is another problem — the sample passes, the container that arrives does not match it.
Our solution: the reflector is molded from CHIMEI PMMA (Taiwan), a first-tier international raw material producer, using imported mold inserts. Stable weather resistance, strong resistance to yellowing, and consistent microprism geometry — with traceable material and tooling, not a “high-brightness reflector” with no origin behind the claim.
2. Reflectors that fall out
In most cases the reflector is bonded to the outside of the housing with adhesive. Adhesive is a wear part: repeated wheel loads, summer heat softening it, winter cold making it brittle, plus rain and grit abrasion. It fails first, the lens lifts at one edge, and the rest is a matter of time.
Our solution: the reflector is installed from the inside. The mounting seat is molded into the housing and the lens is retained from within, with no load-bearing adhesive on the outside. A wheel load pushes the reflector into the housing structure instead of prying it outward.
3. Water and dust getting in from the back
Reflectors rarely fail because the front face wears out. They fail because moisture gets in behind them, condenses into haze, and traps dust into a film. Nothing looks broken on the surface, but the unit is finished. Sand-filled base models are the most exposed — any micro-gap at the fill-to-housing interface lets water travel up the back of the stud, and once it is in, it does not drain. The same batch behaves fine in a dry region and generates a wave of complaints in a wet one.
Our solution: the reflector backing is 100% electroplated — a complete, continuous metallic coating that seals the back surface. Compare that with the other common approach on the market, applying a film layer. A film is always a second layer of material on top of the first, and its edges, pinholes and differential shrinkage after thermal cycling all become water paths. It passes a short-term test and then shows up after a season outdoors. Electroplating is a single integrated coating; a film is two layers stacked together.
4. Not enough load capacity
Logistics yards, fuel stations, parking facilities, heavy-haul lanes and port terminals combine repeated static loading with dynamic wheel loads — plus forklifts, whose small wheels and high axle loads produce far higher contact pressure than a passenger car. Studs without a proper load-bearing structure develop micro-cracks first, then the reflector is crushed or pushed out and the whole unit is gone.
Our solution: load-bearing design built into the housing itself, with a compressive capacity above 20 tonnes. The housing uses CHIMEI ABS from Taiwan — good impact resistance and dimensional stability, so it does not turn brittle and crack after a few freeze-thaw cycles.
These four pain points are one chain. Wrong reflector material means brightness is compromised from the start. An externally bonded lens means the adhesive fails first. A film-based backing means moisture gets in later. A weak housing means the whole unit is crushed under load. Our R001 closes each link with a specific, verifiable choice: CHIMEI PMMA plus imported microprism tooling, internal reflector mounting, 100% electroplated backing, and CHIMEI ABS with a 20-tonne-plus load structure.

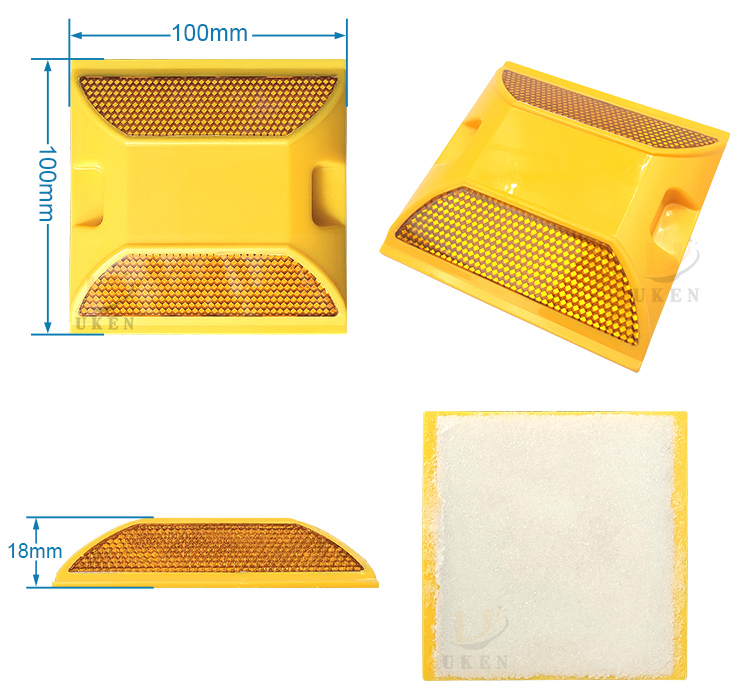

Size of r001 road stud
What to check before you buy
Road studs are a small share of a project’s cost, but they decide whether the markings actually work at night — and whether the job has to be redone. If you are specifying studs, or have failed units on hand, contact us for an R001 sample and full specification data.
