1. Introduction
Driving at night on an unfamiliar mountain road, through a tunnel, or past a highway interchange, drivers depend on more than just lane paint to stay on course. One of the most reliable, low-cost safety devices on the road is the delineator reflector — also called a contour marker, guardrail reflector, or road delineator.
These small but powerful reflective units mark the edges of the road, the outline of guardrails and barriers, and the contour of large vehicles, giving drivers a continuous visual reference in darkness, rain, fog, and poor weather. This guide explains everything you need to know about trapezoidal delineator reflectors: how they work, what colors mean, which materials matter, what standards they must meet, and how to install and maintain them.
2. What Is a Delineator Reflector?
A delineator reflector is a traffic safety device with a retroreflective surface that returns light directly back toward its source. When a vehicle’s headlights strike the reflector, the light bounces back to the driver’s eyes, making the road boundary visible from hundreds of meters away — even when the vehicle’s low beams are on.
Unlike illuminated signs, delineators need no power supply. They are passive devices: no wiring, no bulbs, no maintenance energy cost. This makes them ideal for remote highways, tunnels, bridge approaches, and temporary work zones where installing lighting would be expensive or impractical.
The most common configuration is a trapezoidal reflector unit mounted on a galvanized steel bracket. The trapezoid shape is not random — the angled face is designed to catch headlight beams at shallow angles and redirect them back toward the driver, while the flat metal bracket bolts securely onto guardrails, concrete barriers, fence posts, or vehicle bodies.
3. Types of Delineators and Contour Markers
Delineators fall into two broad families depending on where they are installed:
3.1 Roadside Delineators (Road Contour Markers)
These mark the alignment and boundaries of the roadway itself:
Guardrail reflectors — mounted on W-beam guardrails (corrugated steel rails), commonly seen on highways and mountain roads. The trapezoidal reflector sits on top of or beside the rail, marking the rail’s start, end, and direction changes.
Barrier reflectors — attached to concrete Jersey barriers, bridge parapets, and median walls to show the barrier line.
Post-mounted delineators — flexible or rigid posts with reflective sheeting, placed along road edges where guardrails are absent.
Tunnel and underpass markers — installed on tunnel walls and portal edges so drivers can follow the structure’s contour in low light.
3.2 Vehicle Contour Markers
The same reflector technology is used on trucks, trailers, buses, agricultural machinery, and construction equipment. Vehicle contour markers are mounted along the side, rear, and corners of the vehicle body to outline its full shape — critical for long trailers that are hard to judge at night. The photo-style product seen on many Chinese exports pairs a clear/white reflector with an amber reflector on a shared galvanized bracket, covering both the front side (white, per most regulations) and rear side (amber or red) of a vehicle or structure.
4. Key Features of Trapezoidal Delineator Reflectors

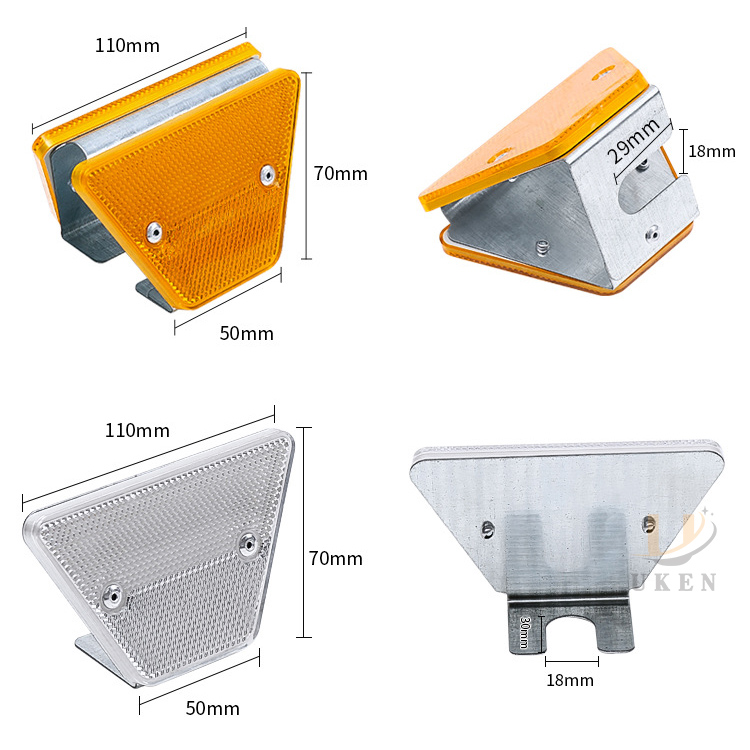

The product shown in the opening image is a typical double-unit trapezoidal delineator: one clear/white reflector and one amber reflector, both mounted on a shared galvanized steel bracket. Here is what makes this design effective:
4.1 Retroreflective Faceted Surface
The face of each reflector is covered with a multi-faceted, diamond-like micro-prism pattern. Each tiny facet acts as a corner cube that reflects light back along its original path. This “faceted retroreflector” achieves:
Wide-angle performance — visible when headlights hit it from the side, not just head-on;
High brightness — clearly visible from 150–300+ meters depending on reflector size and grade;
All-weather reliability — reflects equally well in rain, fog, and dust because it does not depend on a smooth, clean surface.
4.2 Clear/White and Amber Reflectors
White (clear) reflectors are used on the side facing oncoming traffic where white is the standard boundary color (e.g., the left edge of the road in countries with right-hand traffic, and the front/side of vehicles).
Amber/orange reflectors mark the right-hand boundary, or the rear/side of vehicles in many jurisdictions, and are widely used in work zones and on construction equipment.
Having both colors on one bracket lets a single product serve both sides of a structure or vehicle — a practical design for guardrail ends, gate posts, and trailer bodies.
4.3 Galvanized Steel Mounting Bracket
The L-shaped / C-shaped bracket is made of galvanized steel with pre-drilled mounting holes. Galvanization (zinc coating) protects the steel from rust in wet, salty, and coastal environments, giving the bracket a service life of many years outdoors. The pre-drilled holes accept bolts, rivets, or self-tapping screws, so installation takes minutes with basic tools.
4.4 Durable Construction
Quality delineators use UV-stabilized acrylic or polycarbonate for the reflector body, which resists yellowing, cracking, and impact from stones, debris, and cleaning equipment. The riveted assembly keeps the reflector firmly attached to the bracket so it cannot vibrate loose on the highway.
5. What Do the Colors Mean?
Color coding is standardized across most national traffic systems:
Color Typical use
White Road left edge / lane separation (right-hand traffic countries); vehicle front and side
Amber / Yellow Road right edge; vehicle rear and side; work zones; hazardous obstacles
Red Vehicle rear (stop indication); wrong-way warning; left edge in some countries
Green Permitted areas, exits, or special facilities in some regions
Always confirm the local standard before ordering — a reflector set sold for the Chinese market may use a different color layout than one for the EU or US.
6. Materials and Construction Quality
When comparing suppliers, check these four points:
Reflective material — micro-prismatic (faceted) acrylic is superior to old glass-bead film for brightness and durability. Ask for the coefficient of retroreflection (cd/lx/m²) test data.
Body material — UV-stabilized acrylic or PC resists yellowing for 5–10 years outdoors; cheap ABS degrades faster.
Bracket — hot-dip galvanized steel (thicker zinc) beats electro-galvanized for coastal or de-icing-salt environments.
Assembly — riveted or bolted connections last longer than glued ones under vibration.
7. Applications
Trapezoidal delineator reflectors are used in virtually every category of traffic infrastructure:
Highways and expressways — edge lines and guardrail ends;
Mountain roads and hairpin curves — marking the outside edge so drivers can judge the bend at night;
Tunnels and underpasses — portal and wall contour marking;
Bridges and culverts — parapet and pier protection;
Construction and work zones — temporary barriers, cones, and equipment outlines;
Gate posts, driveway entrances, and parking structures — property-level safety;
Trucks, trailers, buses, and farm machinery — vehicle contour marking for night visibility.
8. Standards and Compliance
Depending on your target market, the following standards are relevant:
China — GB/T 24970 (Specification for Delineators): the main domestic standard covering shape, reflectivity, and testing.
United States — TxDOT 8600 series / MUTCD Chapter 3F: governs delineators, object markers, and barrier reflectors used on federal-aid highways; reflective sheeting often references ASTM D4956.
Europe — EN 12899 (fixed vertical road signs) and national appendices for delineation devices.
Vehicle contour markers — regulated under vehicle equipment rules such as UNECE R48 / R104 (EU) and FMVSS 108 (US) for side and rear reflectors on trucks and trailers.
Exporters should provide test certificates (reflectivity, impact, salt-spray, UV aging) that match the buyer’s country requirements.
9. Installation Guide
Installing a trapezoidal delineator with a steel bracket takes about 5 minutes per unit:
Position — place the unit so the reflector face points toward oncoming traffic at roughly a 90° angle to the travel direction; for curves, angle it to face the approaching driver.
Mark holes — hold the bracket in place and mark the pre-drilled holes.
Drill — for concrete or masonry, drill with a hammer drill; for steel guardrails, use the existing rail slots or self-tapping screws; for wood posts, pilot-drill.
Fix — bolt or screw the bracket firmly; use stainless hardware in coastal areas.
Check — verify both reflectors are clean, undamaged, and clearly visible from a vehicle at night.
Spacing tips: on straight roads, 40–50 m spacing is common for post-mounted delineators; on curves, tighten spacing to 10–20 m so drivers always see the next reflector. Guardrail reflectors are typically installed at every rail joint or at 8–16 m intervals.
10. Maintenance and Durability
Delineators are low-maintenance by design:
Clean periodically — a quick wipe with water removes road film that dulls reflectivity; pressure washing is fine for steel-bracket units.
Inspect after winter — snowplow damage and salt corrosion are the main causes of failure; replace bent brackets and cracked reflectors promptly.
Replace individual units — because installation is bolted, a damaged unit can be swapped in minutes without replacing the whole run.
Lifespan — quality units typically last 5–10 years outdoors; verify with the supplier’s UV-aging and salt-spray test data.
11. Why Delineators Beat Active Lighting (and When They Don’t)
Factor Delineator reflector Active LED marker
Power supply None Required (solar panel, battery, or grid)
Upfront cost Low High
Maintenance Minimal Battery/solar service needed
Night visibility Excellent Excellent
Fog/rain performance Good Good
Best use case Remote roads, passive marking High-risk spots needing attention-grabbing
For most boundary-marking needs, passive delineators are the most cost-effective choice. Active LED markers are reserved for exceptional hazards where a stronger attention signal is justified.
12. How to Choose the Right Delineator Reflector
Ask these questions before buying:
Where will it be installed? Guardrail, concrete barrier, post, or vehicle body — determines the bracket type.
Which colors does the local standard require? White, amber, red, or a combination.
What reflectivity grade do you need? Higher-grade micro-prismatic film for high-speed highways; standard grade for low-speed roads and parking.
What is the environment? Coastal salt, tunnel vibration, or extreme cold all affect material choice (hot-dip galvanized bracket + PC body recommended for harsh conditions).
Does the supplier provide test reports? Request reflectivity, impact, salt-spray, and UV-aging certificates.
13. FAQ
Q: Are delineator reflectors the same as road studs (cat’s eyes)? A: No. Road studs are embedded in the pavement surface; delineator reflectors are mounted on vertical structures (guardrails, barriers, posts) or vehicles to mark contours and edges.
Q: Do delineators work without vehicle headlights? A: No — they are retroreflective, not self-luminous. They only glow when headlights (or any light source) shine on them.
Q: How far away can a driver see a trapezoidal delineator? A: With quality micro-prismatic reflectors, visibility commonly ranges from 150 m to 300+ m on low beam, depending on reflector size and grade.
Q: Can the same unit be used on both a guardrail and a truck? A: Usually yes — the galvanized bracket bolts onto steel, wood, or concrete surfaces, so the same product works for guardrails, gate posts, and vehicle bodies.
Q: How long do they last? A: 5–10 years outdoors for quality units with UV-stabilized bodies and galvanized brackets, verified by UV-aging and salt-spray test data.
14. Conclusion
Trapezoidal delineator reflectors are one of the simplest, most reliable investments in road safety. They require no power, almost no maintenance, and they work every night of the year — marking road edges, guarding rail barriers, outlining tunnels, and making trucks and trailers visible on dark highways.
When sourcing, prioritize micro-prismatic reflective faces, UV-stabilized bodies, and hot-dip galvanized steel brackets, and always confirm color layouts and test certificates against your target market’s standards. Whether you are a highway contractor, a fleet operator, or an infrastructure buyer, a well-chosen delineator reflector set pays for itself in visibility — and in accidents avoided.
Need a quote or technical data sheet? Contact us with your application (highway, guardrail, tunnel, or vehicle) and target country, and we will recommend the right color configuration and reflectivity grade.
