Reflective Road Studs
Reflective road studs (also called road cat eyes, raised pavement markers) are essential traffic safety facilities that outline lane boundaries, mark curves, crossroads and road edges at night or in foggy weather. However, many buyers struggle to pick cost-effective, long-lasting studs matching their road conditions. Whether you’re a highway contractor, municipal procurement officer, traffic safety distributor or driveway project manager, this guide breaks down all critical factors to evaluate before purchasing reflective road studs, combining real product specs from mainstream industrial catalogs for practical reference.
1. Select the Right Housing Material Based on Traffic Load & Environment
The shell material directly determines load capacity, corrosion resistance and service life. Four mainstream materials cover all application scenarios, with clear pros and cons:
1.1 Aluminum Alloy Road Studs (UK-R007/R008/R015 Series)
Specs from catalog: Aluminum+PMMA reflector, load capacity up to 30 tons, net weight 190g–340g, sizes 100*100*20+48/50/55mm
Advantages: High compressive strength, anti-rust, impact-resistant, suitable for heavy-duty highways, port roads, coastal saline areas; spike base locks firmly to asphalt/concrete, not easy to fall off under vehicle vibration.
Best for: Expressways, truck lanes, mountain winding roads, coastal cities with salt fog.
1.2 ABS/PC Plastic Road Studs (UK-R001/R003/R004 Series)
Specs from catalog: ABS+PC+PMMA, load capacity 16–20 tons, lightweight 65g–230g, multiple flat rectangular sizes (100*100mm, 116*82mm)
Advantages: Low cost, lightweight for easy installation, UV-resistant, no rust risk, diverse color options. Epoxy resin + quartz sand filling improves anti-slip and wear resistance.
Best for: Urban arterial roads, community driveways, low-medium traffic municipal roads, temporary construction road markings.
1.3 Ceramic Road Studs (UK-C001)
Specs: Solid ceramic, sizes 4/6/8 inch, ultra-high hardness, temperature resistant from -40℃ to 70℃
Advantages: Wear resistance far exceeds plastic and aluminum, withstands 30+ tons heavy trucks, zero corrosion, service life 5–8 years.
Best for: Heavy-load logistics yards, toll station lanes, long-term permanent road marking projects.
1.4 Tempered Glass Road Studs (UK-G001)
Specs: Transparent tempered glass, super high light transmittance, reflective distance over 500m
Advantages: 360° omnidirectional reflection, excellent rainy-night visibility, clean appearance.
Best for: Tunnel entrances, pedestrian zebra crossings, scenic area walkways, low-speed residential zones.

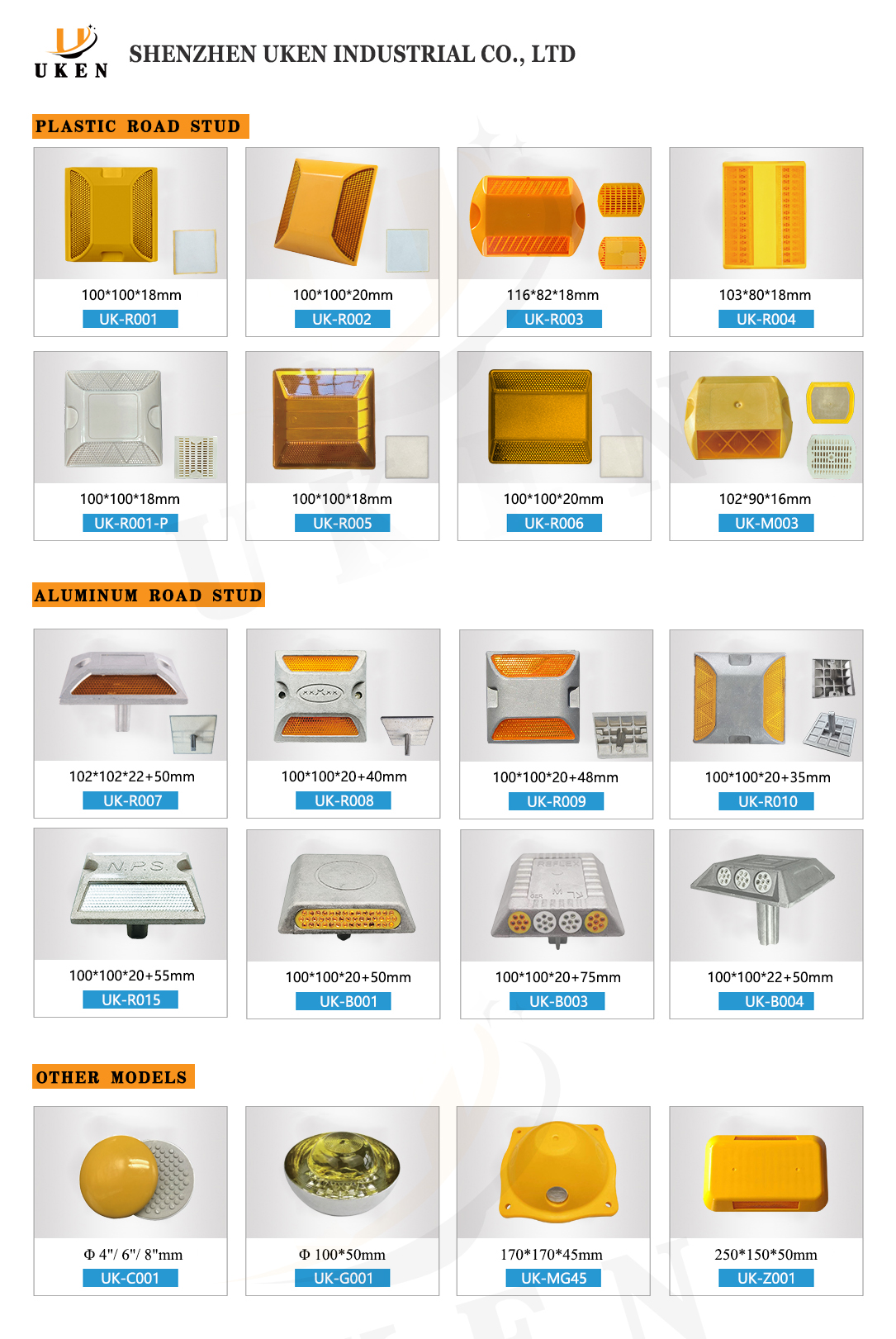

Reflective Road Stud Catalogue
2. Check Core Reflective Performance: Reflector Type & Visible Distance
The core function of road studs is retro-reflection; two mainstream reflective structures deliver totally different visibility effects:
2.1Micro Prism PMMA Reflector
Used in UK-R full series aluminum and plastic studs. Precision micro prism optical structure delivers stable reflection, visible distance up to 500–800 meters, clear light output even at oblique driving angles. Ideal for high-speed roads with fast-moving vehicles.
2.2Glass Bead Reflector
Adopted by UK-B001/B002/B003 aluminum/ABS studs, embedded with 43–56 glass beads. Uniform soft reflection, cost advantage, standard visible distance of 500m. More suitable for urban low-speed roads, parking lots and pedestrian paths.
2.3Buyer Tip
For highways with speed limits above 80km/h, prioritize micro prism PMMA reflective studs for longer early warning distance.
3. Confirm Load Capacity According to Road Vehicle Type
Overlooking load rating is the top reason road studs crack or sink within months. Match load capacity to actual traffic weight:
3.1Residential driveways, pedestrian roads: 10–16 tons ABS plastic studs (UK-R001P, 16T load)
3.2Urban city roads, bus lanes: 17–20 tons PC modified plastic or lightweight aluminum studs (UK-R003A, 17T load)
3.3Highways, freight truck lanes: 23 tons heavy aluminum studs (UK-R007) or 30T high-load ABS series (UK-Z001)
3.4 Ports, logistics heavy vehicle zones: Ceramic studs or heavy engineering plastic MG series supporting 30–40 tons
4. Choose Correct Colors Following Global Traffic Marking Rules
All catalog models support red/yellow/white/blue/green reflectors, each color has fixed traffic guidance meaning:
4.1White: Divides same-direction lanes, marks road centerlines
4.2Yellow/Amber: Separates opposite traffic, road edge lines, school zones
4.3Red: Reminds drivers of road ends, one-way exit, forbidden entry
4.4Green/Blue: Tunnel passages, emergency lanes, special vehicle dedicated lanes
When ordering, confirm with suppliers that reflective color pigments meet anti-fading standards to avoid discoloration after 1–2 years of sun exposure.
5. Verify International Quality Certifications & Standards
For cross-border export and formal municipal engineering, only certified studs pass inspection:
5.1EN 1463-1: Mandatory EU standard for road studs, required for CE marking shipments to Europe, covers reflectivity, compression resistance and weather aging tests
5.2ASTM D4280: North American market standard for raised pavement markers Products in the UKEN catalog fully comply with both standards, eliminating customs clearance risks for overseas buyers.
Avoid uncertified cheap studs: they often fail anti-UV and compression tests, requiring frequent replacement and raising long-term maintenance costs.
6. Decide Installation Style: Spike Base vs Flat Adhesive Base
Two installation structures fit different pavement types:
6.1Spike Base Studs (UK-R007/R008/R015/UK-B003)
Equipped with integrated plastic/metal spikes (length 48–75mm). Drill holes into asphalt/concrete, insert spikes and fill with epoxy glue. Extremely firm, anti-loosening under heavy vehicle rolling. Best for permanent highway installation.
6.2Flat Bottom Adhesive Studs (UK-R001/R003/R004)
No spikes, flat bottom filled with epoxy quartz sand. Directly bonded to smooth road surfaces with special pavement glue. Fast installation, no drilling damage to road surface. Perfect for temporary road marking, old road renovation, parking lots.
7. Calculate Cost-Efficiency: Balance Unit Price & Service Life
Many buyers only compare unit price but ignore long-term replacement cost:
7.1 Short-term small projects (1–2 year temporary roads): Choose lightweight ABS flat studs (low initial cost)
7.2 Long-term municipal/highway projects (5+ year service life): Select aluminum or ceramic studs. Although unit price is higher, their wear resistance cuts replacement labor and material expenses by 60% in 3 years.
Also check packaging parameters before bulk order: carton gross weight, quantity per carton, carton dimension, to calculate logistics cost accurately (e.g., UK-R007 aluminum studs: 50pcs per carton, GW 17.5kg; UK-R001P plastic studs: 200pcs per carton, GW 23kg).
8. Additional Weather Resistance Details for Extreme Climates
8.1 High-temperature desert areas: Pick PC+ABS anti-aging shells to prevent plastic deformation
8.2 Cold northern regions (-30℃ below zero): Confirm materials pass low-temperature impact testing, avoid brittle cracking
8.3Rainy coastal cities: Aluminum anti-corrosion alloy studs are preferred over ordinary plastic to resist salt water erosion
8.4Frequent snow-plow roads: Thickened aluminum alloy housing prevents scraping damage from snow removal equipment
9.Final Buying Checklist Before Placing Orders
9.1 Confirm road type & maximum vehicle tonnage → match material and load capacity
9.2 Determine permanent/temporary installation → spike base or adhesive flat base
9.3 Confirm sales region → comply with EN 1463 / ASTM certification
9.4 Select reflector type: micro prism for highways, glass bead for urban low-speed roads
9.5 Pick reflector color according to traffic marking requirements
9.6 Check local climate (salt fog, extreme cold/heat) to select corrosion & temperature resistant housing
9.7 Compare unit price + packaging logistics cost to judge overall cost performance
Investing in qualified reflective road studs drastically reduces nighttime traffic accidents. By matching material, load, reflection performance and installation method to your actual road conditions, you can avoid unnecessary waste and achieve long-term stable traffic safety effects.
