Smart zebra crossing system is a new-generation intelligent traffic safety solution designed to solve common road hazards caused by phone-distracted pedestrians and inattentive drivers. Traditional overhead traffic lights often fail to catch the attention of “phone zombies”, leading to frequent red-light running and pedestrian-vehicle conflicts. Our upgraded acousto-optic linkage system delivers ground-level visual + voice active warning, greatly improving road safety at urban intersections.
1. Design Purpose
Many pedestrians ignore traffic conditions while looking at mobile phones. To fix this blind-spot safety risk, we move key traffic warning signals from high poles to the road surface and pedestrian waiting area. The low-height, eye-level light and voice reminders effectively alert inattentive pedestrians and drivers, reducing intersection accidents from the source.
Intelligent Pavement Marker LED Embedded Road Stud Ground Traffic Light Smart Crosswalk Pedestrian Crossing Synchronized System
2. Working Principle
Our system achieves precise synchronous linkage with original pedestrian traffic lights, requiring no major system reconstruction:
– For vehicles: When the pedestrian green light is on, embedded road studs on the vehicle lane turn on red light synchronously, reminding drivers to stop and yield to pedestrians.
– For pedestrians: Yellow voice warning columns are installed at both sides of the crossing. Once pedestrians attempt to cross during a red light, the columns automatically trigger voice prompts of “No entry, do not run the red light” to stop unsafe crossing behaviors.
The whole system runs automatically 24/7, adapting to night, rain, fog and other complex weather conditions.

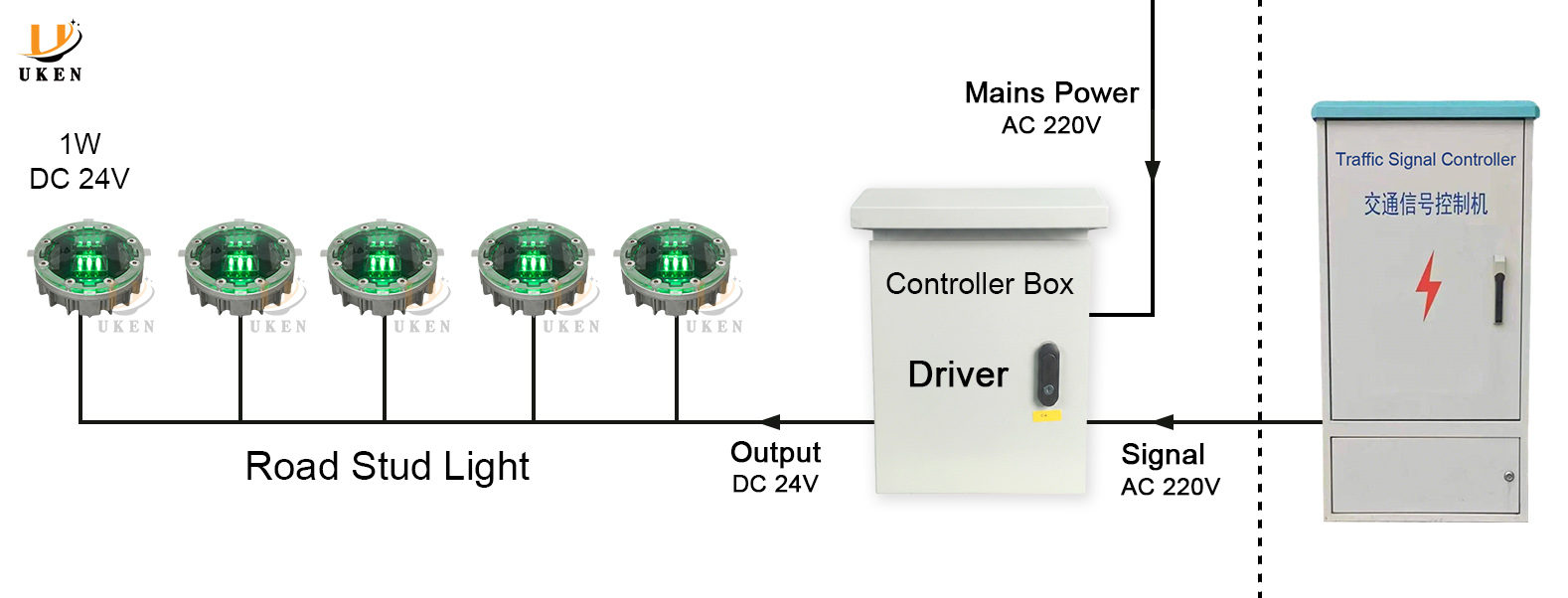

Wiring diagram for smart zebra crossing
3. Core Components & Functions
This integrated smart zebra crossing solution consists of four core industrial-grade components, forming a complete early warning system:
● Traffic Signal Light
The core signal control unit that supports millisecond-level synchronous output, ensuring all lights and voice devices work in precise sync without delay or disorder.
● Embedded Road Studs
IP68 waterproof and pressure-resistant road studs buried at lane entrances. Synchronous red light warning effectively reminds drivers to yield, eliminating visual blind spots.
● LED Pavement Floor Lights
Laid on the zebra crossing, synchronized with traffic signals to switch red/green light. Ground-level lighting strongly attracts distracted pedestrians’ attention and guides safe crossing.
● Intelligent Voice Warning Columns
Equipped with human body induction sensors. Auto-trigger voice warning for red-light violations, with customizable voice content and volume, no noise pollution in standby mode.
4. Product Advantages & Application Scenarios
Advantages: Easy installation, no large road reconstruction needed, all-weather stable operation, low power consumption, ultra-low maintenance cost, and full customized support for different intersection sizes.
Applicable scenarios: Urban roads, school & kindergarten intersections, community entrances, commercial streets, industrial parks and tourist attractions.
Intelligent Pavement Marker LED Embedded Road Stud Ground Traffic Light Smart Crosswalk Pedestrian Crossing Synchronized System
5. Inquiry & Cooperation
We are a professional manufacturer of smart traffic equipment, providing one-stop services including solution design, production, installation and after-sales support. Welcome distributors, engineering companies and government purchasers to contact us for quotations, detailed parameters and project cases. We offer customized solutions for your traffic safety upgrade projects!
